Rotor Spinning Clothing Rings / Integrated Clothing Rings
JSM high-precision, one-piece clothing rings deliver stable fiber opening at full production speed. Eight tooth profiles — B174, B174-2, B20, B187, B300, S21, S43 and OK61 — cover cotton, flax, polyester and viscose programs, with DN diamond-nickel coating (HV 1000–1200) for longer, low-maintenance service. Precision-made for Schlafhorst Autocoro SE8–SE20 and Rieter R40/R60/R66 (NG64).
High-Precision Clothing Rings for OE Spinning
JSM manufactures high-quality rotor spinning clothing rings and integrated clothing rings for OE spinning machines. Our products are designed to provide consistent fiber opening, reduced wear, stable yarn quality and extended operating life. They are widely used as OEM replacement parts for Schlafhorst Autocoro (SE8–SE20) and Rieter (R40/R60/R66) rotor spinning machines.
The same part is known under different names depending on the machine platform: combing roller clothing ring (Schlafhorst), opening roller clothing ring (Rieter) and integrated clothing ring for fully automatic machines. JSM rings are supplied with a clear suffix system: DN (diamond-nickel coating, HV 1000-1200) and NG64 (Rieter R-series configuration). Tell us your machine model and we supply the correct configuration.
Compatible Machines
Schlafhorst
SE8 / SE9 / SE10 / SE11 / SE12 / SE20
Rieter
R40 / R60 / R66 (NG64)
Why Choose JSM Clothing Rings
Stable Fiber Opening
Optimized tooth profiles (B174, B174-2, B20, B187, B300, S21, S43, OK61) ensure uniform opening and improved spinning stability.
Long Service Life
DN diamond-nickel coating (HV 1000-1200) and chromium plating options reduce wear, maintenance frequency and replacement cost.
Precision Manufacturing
CNC machining and strict quality control guarantee dimensional consistency and high concentricity for fully automatic machines.
OEM Replacement Compatibility
Direct replacement for original clothing rings on Schlafhorst Autocoro and Rieter OE spinning machines.

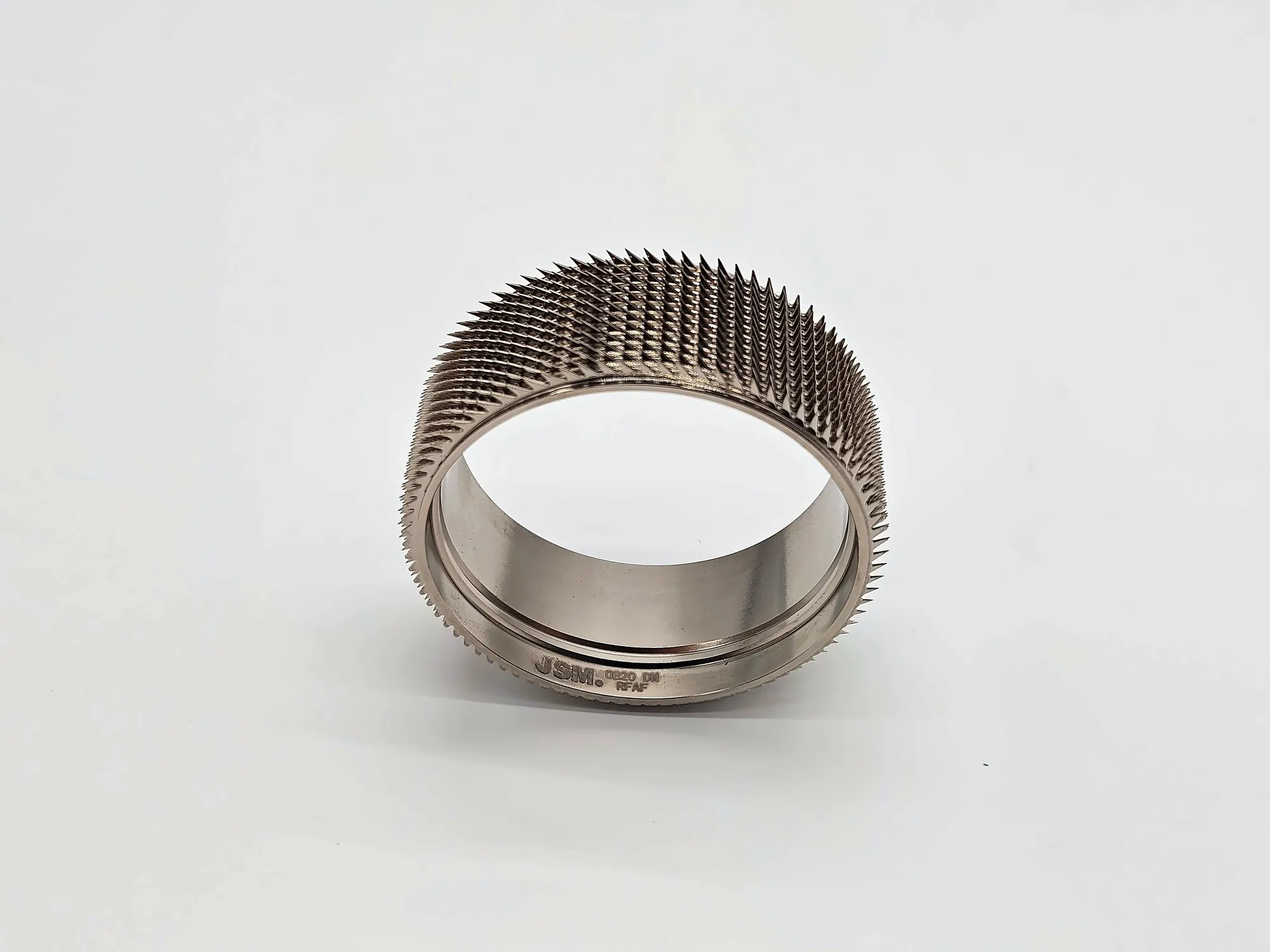

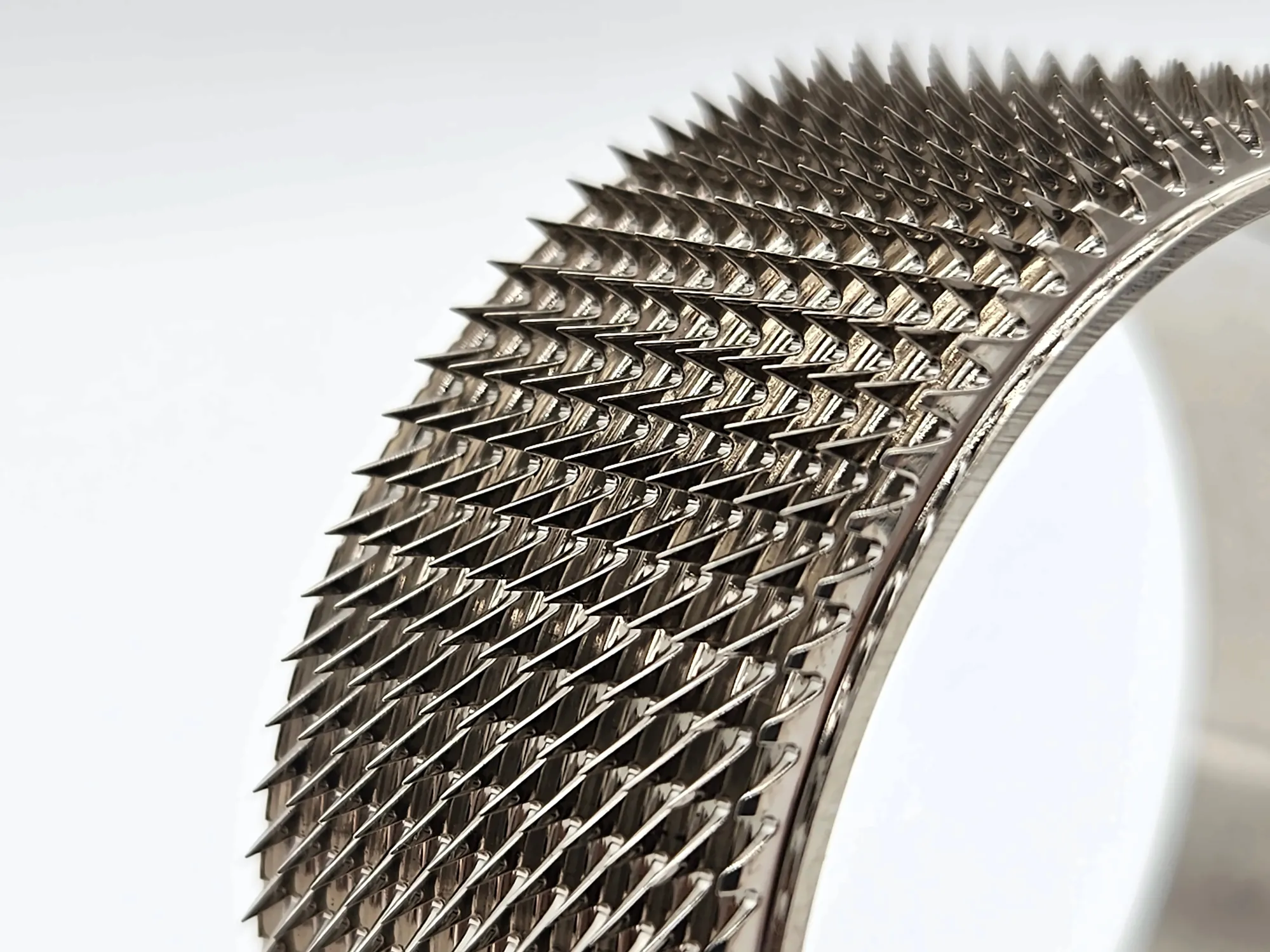

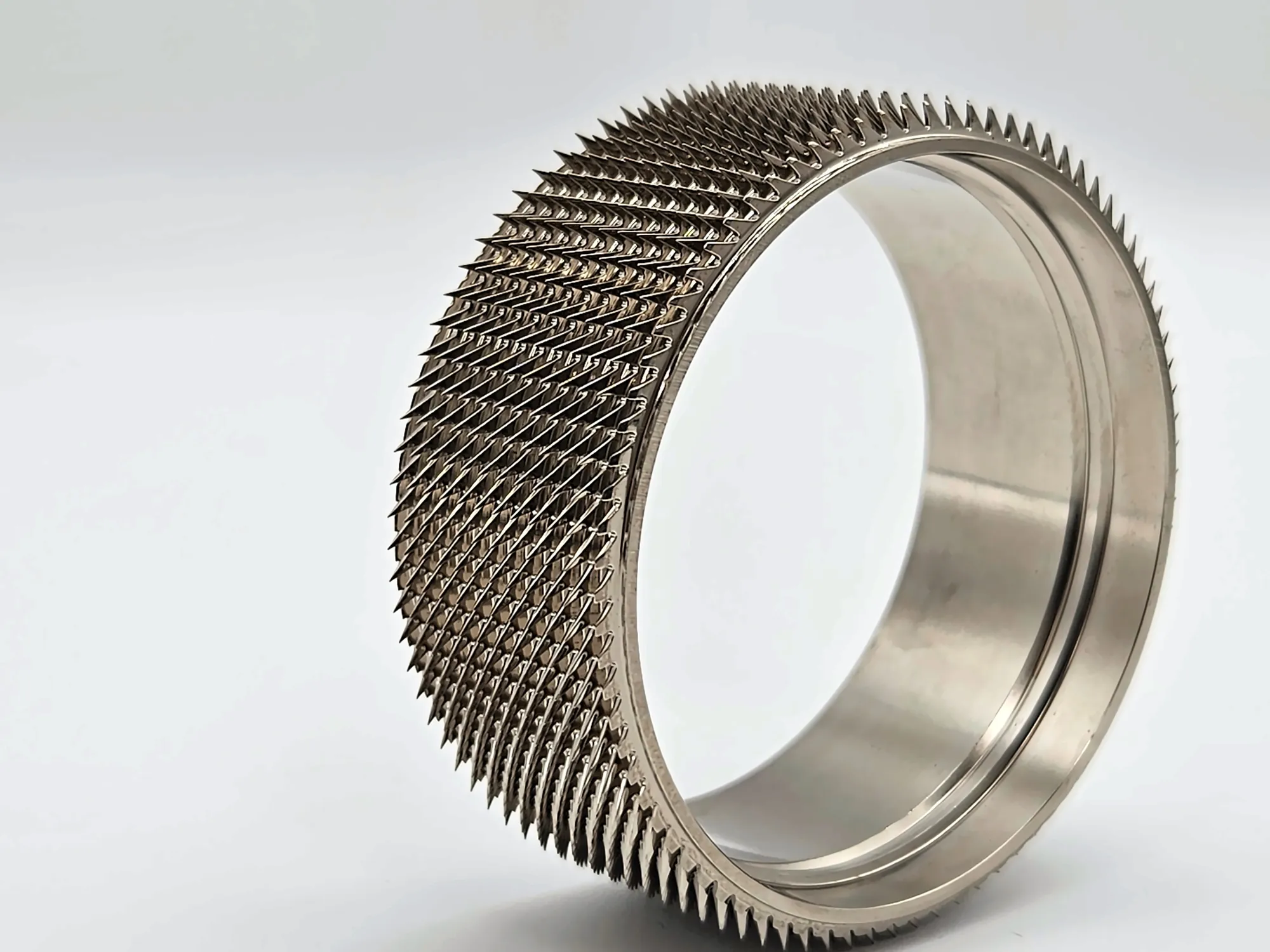

Product Gallery
Technical Specifications
| Item | Description |
|---|---|
| Product Name | Rotor Spinning Clothing Ring / Integrated Clothing Ring |
| Tooth Profiles | B174 · B174-2 · B20 · B187 · B300 · S21 · S43 · OK61 |
| Surface Treatment | DN diamond-nickel coating (HV 1000-1200) · Chromium plating · Graf metallic card clothing |
| Application | OE / Rotor Spinning Machines (fiber opening & cleaning) |
| Machine Brands | Schlafhorst (SE8–SE20) · Rieter (R40/R60/R66 NG64) |
| Material | Wear-resistant alloy steel |
| Manufacturing | Precision CNC machining + heat treatment |
| Quality Control | 100% inspection before delivery |
Tooth Type Selection Guide
Match the tooth profile to your fiber mix. As a general rule, B-series types (B174, B174-2, B20, B187) suit cotton and natural fibers (carded cotton, combed cotton, flax blends), while S-series types (S21, S43) suit synthetic fibers (polyester, viscose, acrylic and blends). B300 and OK61 are newer DN-coated types with application data under confirmation.
| Tooth Type | Recommended Fiber Applications | Coating | Schlafhorst OEM No. | JSM Code |
|---|---|---|---|---|
| B174 / B174-2 | Carded cotton, flax blends (best); combed cotton, viscose (OK); not recommended for P/C or synthetic blends | DN | 117-037 295 | 421741 |
| B20 | Carded & combed cotton, flax blends (best); viscose (OK); not for pure synthetic fibers | DN | 117-037 297 | 422001 |
| B187 | Combed cotton, viscose (best); blends (OK); not for carded cotton, acrylic or flax | DN | — | On request |
| S21 | Polyester, viscose, acrylic & P/C blends (best); cotton (OK); not for flax — the main synthetic choice | DN | — | 422101 |
| S43 | Polyester, P/C & P/V blends (best); not for cotton, viscose, acrylic or flax | DN | — | 424301 |
| B300 | New tooth type — application data under confirmation | DN | — | 423001 |
| OK61 | New tooth type — application data under confirmation | DN | — | 426101 |
Suffix system: DN = diamond-nickel coating (HV 1000-1200) · NG64 = Rieter R-series configuration.
Rieter NG64 Versions (R40 / R60 / R66)
| Tooth Type | Coating | Rieter OEM No. | JSM Code |
|---|---|---|---|
| S21 DN NG64 | DN | 8142111 | 412101 |
| B174 DN NG64 | DN | 81421111 | 411741 |
| B20 DN NG64 | DN | — | 412001 |
| B300 DN NG64 | DN | — | 413001 |
| S43 DN NG64 | DN | — | 414301 |
| OK61 DN NG64 | DN | — | 416101 |
Available Models
| Machine Brand | Machine Series | Part Type |
|---|---|---|
| Schlafhorst | SE8 / SE9 / SE10 / SE11 / SE12 / SE20 | Integrated Clothing Ring |
| Rieter | R40 / R60 / R66 (NG64) | Clothing Ring (opening roller) |
Why Choose JSM as Your Supplier
CNC Manufacturing
In-house precision CNC machining delivers high dimensional consistency across every batch, matching OEM tolerances.
Strict Quality Control
100% inspection before delivery — dimensional, tooth profile and surface checks on every clothing ring.
Fast Delivery
Export-ready production and stocked popular models shorten lead times for mills running continuous shifts.
Global Supply
Serving spinning mills worldwide with a full range of OE spinning components and OEM/ODM capability.
How Clothing Rings Influence Yarn Quality
A worn or damaged clothing ring can cause poor fiber opening, higher trash content, increased yarn CV%, more end breakages and unstable spinning performance. Replacing the clothing ring at the correct maintenance interval helps maintain consistent yarn quality and machine efficiency. Matching the right tooth type to your fiber mix — see the Tooth Type Selection Guide above — also plays a key role in spinning stability.
Practical rule: check clothing rings every 3–6 months depending on fiber type and rotor speed; combing roller speeds of 7,500–9,000 rpm accelerate wear, so mills running high speeds should stock replacement rings in advance.
Manufacturing & Quality Control
JSM controls the complete production process to ensure stable quality and reliable performance for every batch.
- CNC machining
- Heat treatment
- Surface treatment (DN diamond-nickel coating / Cr plating / Graf wire)
- Dimensional inspection
- 100% final quality inspection before delivery
Frequently Asked Questions
What is an integrated clothing ring?
An integrated clothing ring is a one-piece ring used in the opening roller (combing roller) assembly of rotor spinning machines for fiber opening and cleaning. One-piece design gives superior concentricity for fully automatic machines.
Which machines are compatible?
Our clothing rings cover Schlafhorst Autocoro SE8–SE20 and Rieter R40/R60/R66 (NG64 configuration) OE machines.
Which tooth type should I choose for my fiber?
Use the Tooth Type Selection Guide above. As a rule: B174/B174-2 and B20 for carded cotton, combed cotton and flax blends; B187 for combed cotton and viscose; S21 as the main synthetic choice (polyester, viscose, acrylic and blends); S43 for polyester and P/C blends. B300 and OK61 are newer DN-coated types — contact us for application data.
What do DN and NG64 mean?
DN = diamond-nickel coating (HV 1000-1200), offering maximum wear resistance for abrasive fibers and high-speed mills. NG64 = the Rieter R-series configuration (R40/R60/R66). B-series tooth types suit cotton and natural fibers; S-series tooth types suit synthetic fibers.
Can you manufacture according to samples or drawings?
Yes. We can produce compatible replacement parts based on customer samples or technical drawings, with 100% inspection before delivery.
When should a clothing ring be replaced?
Replacement depends on fiber type, running speed and wear condition. As a practical rule, inspect clothing rings every 3–6 months; combing roller speeds of 7,500–9,000 rpm accelerate wear, so high-speed mills should stock replacement rings in advance.
How do I choose the correct model?
Please send your machine model, part number or a photo of the existing part. Our team will help identify the correct replacement within 24 hours.
Related Products
Opening Roller Complete
Complete opening roller / combing roller assemblies, plug-and-play replacement.
Carding Wire / Clothing Strip
Individual wire strips for roller head re-clothing — Graf wire, DN diamond and Cr coating options.

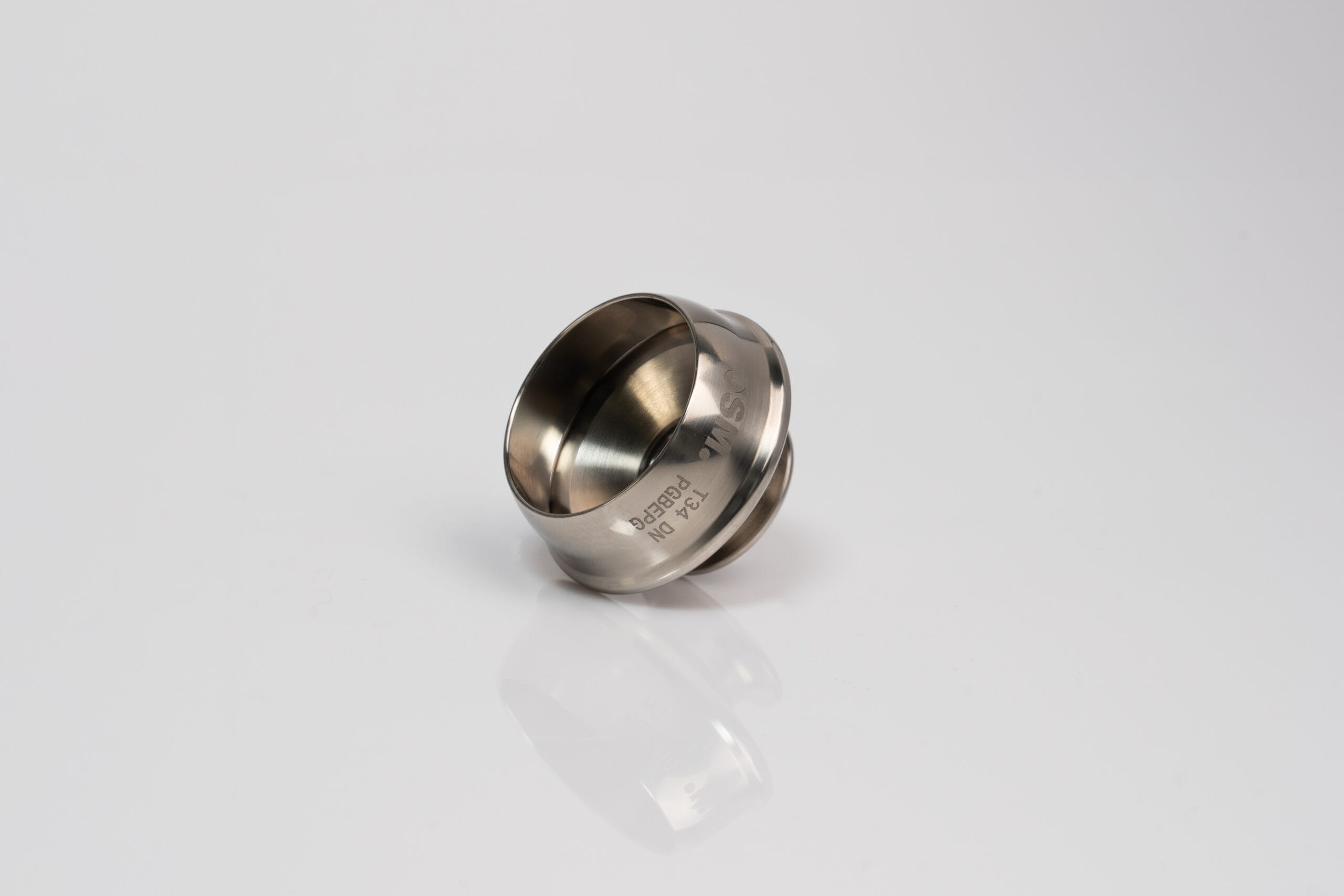

Rotor Cup & Complete
