Rotor complete assemblies for Saurer BD320, BD330, BD350, BD380, BD416, BD448, BD6 and BD7 open-end spinning machines. JSM supplies multiple rotor configurations with different bearing and coating options, including diamond, diamond + nitride and boronized coatings. Custom configurations are also available.
Saurer BD Rotor Complete Assemblies
JSM supplies complete rotor assemblies for Saurer BD series open-end spinning machines. The range covers different rotor diameters, bearing configurations and coating options for different spinning conditions. Standard configurations are available, and custom requirements can also be discussed.
How to Choose a Rotor Complete for Saurer BD Machines
The correct rotor configuration depends on the operating speed, yarn count, fibre characteristics, rotor diameter and coating. Machine model is only one part of the selection process.
Match the Rotor to Speed
Start with the actual operating speed of the spinning machine.
- T100 configurations — up to 110,000 rpm
- 72-8 configurations — up to 80,000 rpm
- Large-diameter rotors — lower recommended speeds
Match Rotor Diameter to Application
Rotor diameter and configuration should be selected according to yarn count and fibre characteristics.
- T32 / T33 / T34 / R36 — standard applications
- T40 / T43 / V43 — medium and coarse applications
- L54 / Z54 / Z66 — large-diameter applications
Select the Coating
JSM offers different coating choices according to fibre characteristics, operating conditions and required service performance.
- D — Diamond coating
- DN — Diamond + Nitride coating
- BD — Boronized coating

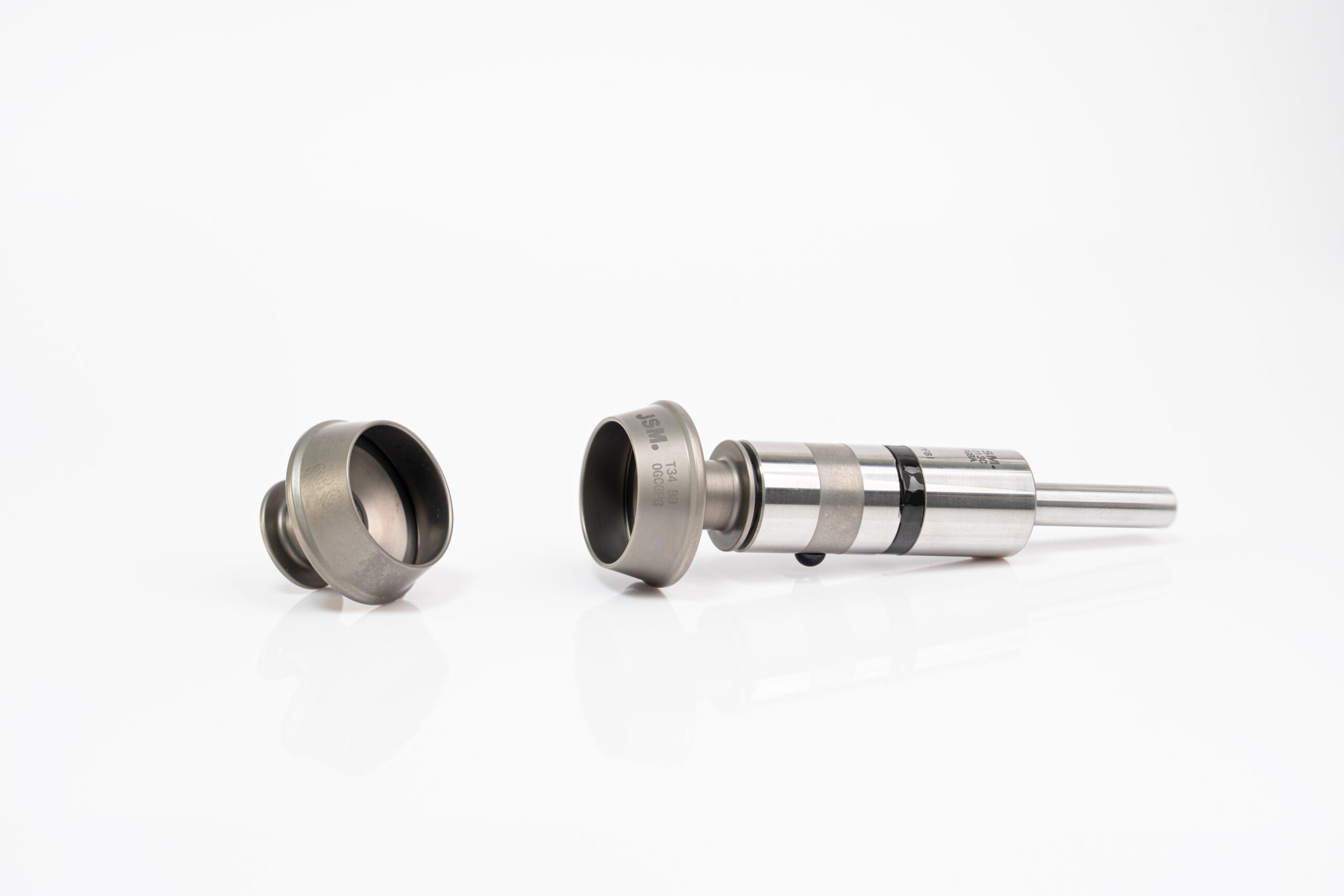

T100 Bearing Rotor Complete — Up to 110,000 rpm
High-speed rotor configurations for standard to fine yarn applications. Recommended operating speed: ≤105,000 rpm.
| Rotor Model | Bearing | Max Speed | Recommended Speed | Coating |
|---|---|---|---|---|
| T32-DN | T100 | 110,000 rpm | ≤105,000 rpm | DN — Diamond + Nitride |
| T33-DN | T100 | 110,000 rpm | ≤105,000 rpm | DN — Diamond + Nitride |
| T34-D | T100 | 110,000 rpm | ≤105,000 rpm | D — Diamond |
| T34-DN | T100 | 110,000 rpm | ≤105,000 rpm | DN — Diamond + Nitride |
| R36-DN | T100 | 110,000 rpm | ≤105,000 rpm | DN — Diamond + Nitride |
72-8 Bearing Rotor Complete — Up to 80,000 rpm
Rotor configurations for standard to coarse yarn applications. Recommended operating speed: ≤72,000 rpm.
| Rotor Model | Bearing | Max Speed | Recommended Speed | Coating |
|---|---|---|---|---|
| T40-DN | 72-8 | 80,000 rpm | ≤72,000 rpm | DN — Diamond + Nitride |
| T43-D | 72-8 | 80,000 rpm | ≤72,000 rpm | D — Diamond |
| T43-DN | 72-8 | 80,000 rpm | ≤72,000 rpm | DN — Diamond + Nitride |
| V43-DN | 72-8 | 80,000 rpm | ≤72,000 rpm | DN — Diamond + Nitride |
Large-Diameter Rotor Complete — Recommended ≤60,000 rpm
L54 and Z54 rotor configurations for coarse yarn applications requiring larger rotor diameters.
| Rotor Model | Bearing | Max Speed | Recommended Speed | Coating |
|---|---|---|---|---|
| L54-D | 72-8 | 80,000 rpm | ≤60,000 rpm | D — Diamond |
| Z54-D | 72-8 | 80,000 rpm | ≤60,000 rpm | D — Diamond |
Z66 Rotor Complete — Recommended ≤50,000 rpm
Large-diameter heavy-duty rotor configuration for coarse and demanding spinning applications.
| Rotor Model | Bearing | Max Speed | Recommended Speed | Coating |
|---|---|---|---|---|
| Z66-DN | 72-8 | 80,000 rpm | ≤50,000 rpm | DN — Diamond + Nitride |
Understanding Saurer BD Rotor Model Codes
JSM rotor model codes indicate the rotor series, nominal diameter and coating configuration. The exact rotor should be selected according to the machine specification and spinning application.
Saurer BD Series Machine Compatibility
BD320, BD330, BD350, BD380, BD416, BD448, BD6 and BD7.
The standard rotor models listed on this page are designed for the BD series machines above. Rotor selection should still be based on rotor specification, operating speed, yarn count and spinning application.
Need a different configuration? JSM can manufacture custom rotor configurations according to specific dimensions, bearing requirements, coating requirements and spinning conditions.
Why Choose JSM Rotor Complete Assemblies?
JSM combines precision machining, coating technology, dynamic balancing and quality control to manufacture replacement rotor components for open-end spinning machines.
Precision CNC Machining
Precision machining and dimensional control for consistent rotor geometry.
In-House Coating
Different coating options can be supplied according to fibre, speed and application requirements.
Dynamic Balancing
Rotor assemblies are dynamically balanced for stable high-speed operation.
Custom Manufacturing
Custom rotor configurations are available for specific machine and spinning requirements.
Saurer BD Rotor Complete FAQ
What rotor complete assemblies are available for Saurer BD machines?
JSM supplies rotor complete assemblies for Saurer BD series open-end spinning machines, including T, R, V, L and Z series configurations. Different bearing and coating options are available.
Which Saurer BD machines are compatible with these rotor assemblies?
The standard rotor models on this page are compatible with BD320, BD330, BD350, BD380, BD416, BD448, BD6 and BD7 machines.
What coating options are available?
JSM offers D diamond coating, DN diamond + nitride coating and BD boronized coating options. These are different coating choices for different spinning requirements.
What is the maximum speed of the T100 rotor configuration?
The T100 configurations listed on this page have a maximum speed of 110,000 rpm, with a recommended operating speed of up to 105,000 rpm.
Which Saurer BD rotor is suitable for coarse yarn?
Larger rotor configurations such as L54, Z54 and Z66 can be considered for coarse yarn applications. Final selection should be based on yarn count, fibre type and operating speed.
Can JSM manufacture custom Saurer BD rotor assemblies?
Yes. In addition to the standard configurations listed on this page, JSM can manufacture custom rotor assemblies according to specific dimensions, bearing requirements, coating requirements and spinning applications.
What information should I provide when requesting a quote?
Please provide the BD machine model, existing rotor model, yarn count, fibre or material, operating speed and required quantity. Photos, drawings or markings on the existing component are also helpful.
Looking for a Saurer BD Rotor Complete?
Send us your machine model, existing rotor model, yarn count and operating speed. JSM can help identify the appropriate rotor complete configuration for your application.
